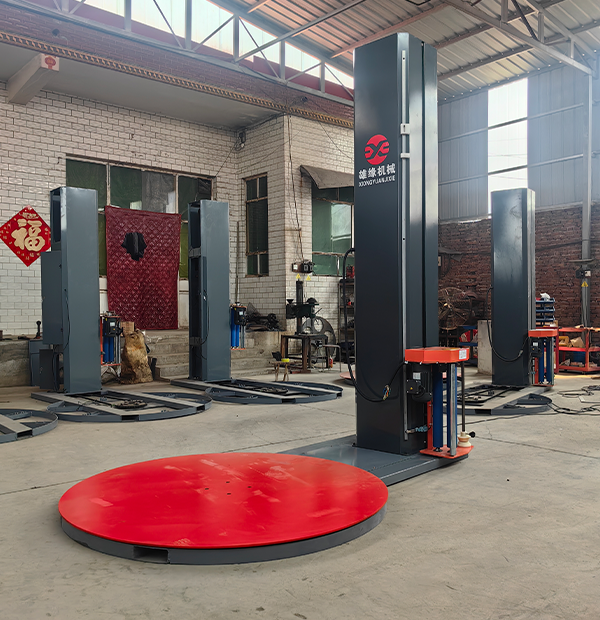

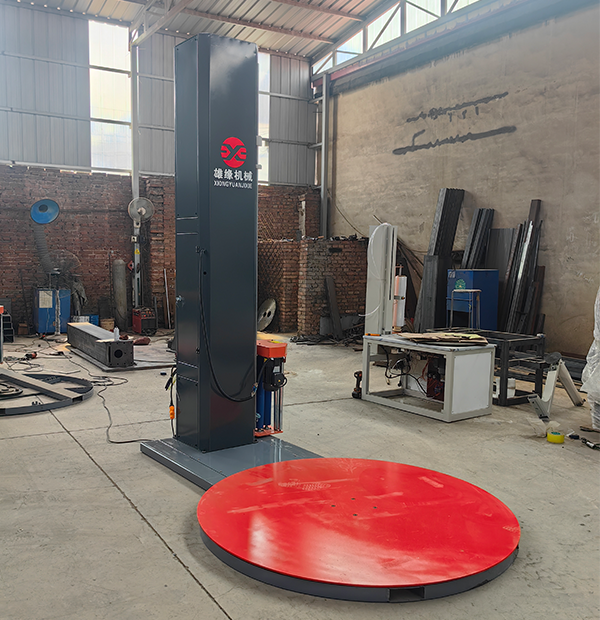

1. Equipment model: TP1650F pallet wrapping machine

2. Applicable product specifications

Disc diameter 1650mm non-black, silver goods

Packaging height within 2000mm (optional)

3. Wrapping film specifications: white machine film with a width of 500mm

2.Scope of delivery

1. Pallet wrapping machine

2. Certificate of Conformity

3. User Manual

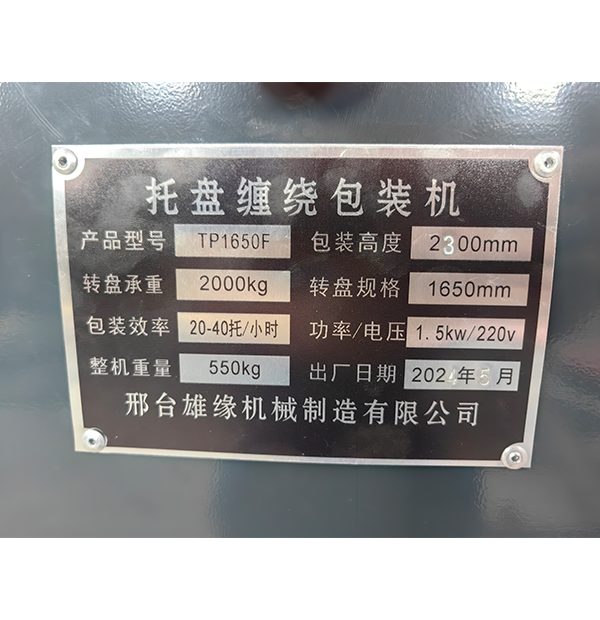

4. Equipment Nameplate

Main Technical Parameters: (subject to the actual product)

Disc diameter: 1650mm

Packaging height: 2000mm

Packaging efficiency: 20-40 pallets/hour

Turntable speed: 0-12rpm, variable speed adjustable, slow start and slow stop

Turntable size: diameter: 1650mm, height: 85mm

Turntable load: 2000kg

Mold frame system: pre-stretched film frame, pre-stretching up to 250%, automatic film feeding, AC speed regulation system

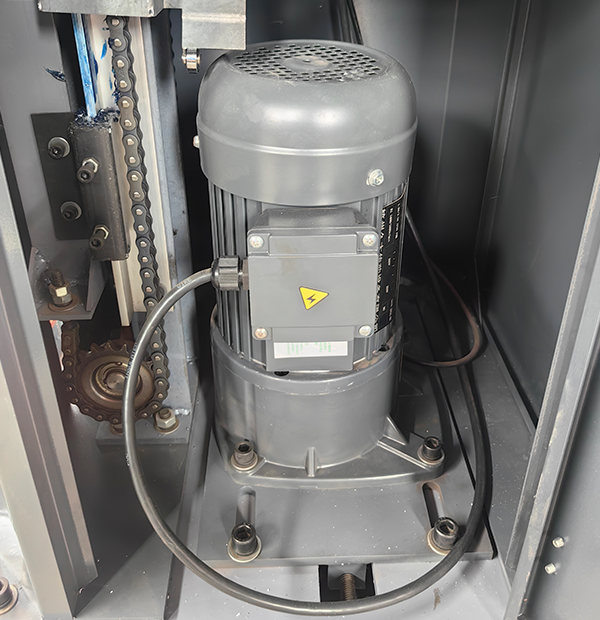

Lifting column: double chain structure, variable lifting speed

Control system: PLC control, adjustable winding layers, times, adjustable over-top height

Packaging material: LLDPE stretch film, thickness (T) 17-35um, width (W) 500mm

Machine weight: approx. 600kg

Voltage/power: AC220V about 1.5kw

Product specifications and uses (subject to the actual product)

1. Equipment model: TP1800F pallet wrapping machine

2. Applicable product specifications

Round diameter 1800mm non-black, silver goods

Packaging height within 2000mm (optional)

3. Wrapping film specifications: white machine film with a width of 500mm

2. Scope of delivery

1. Pallet wrapping machine

2. Certificate of conformity

3. User manual

4. Equipment nameplate

Main technical parameters: (subject to the actual product)

Disc diameter: 1800mm

Packaging height: 2000mm

Packaging efficiency: 20-40 pallets/hour

Turntable speed: 0-12rpm, variable speed adjustable, slow start and slow stop

Turntable size: diameter: 1800mm, height: 85mm

Turntable load: 2000kg

Mold frame system: pre-stretched film frame, pre-stretching up to 250%, automatic film feeding, AC speed regulation system

Lifting column: double chain structure, lifting speed variable adjustable

Control system: PLC control, winding layers, times adjustable, over-top height adjustable

Packaging material: LLDPE stretch film thickness (T) 17-35um width (W) 500mm

Machine weight: approx. 600kg

Voltage/power: AC220V about 1.5kw

Product specifications and uses (subject to the actual product)

1. Equipment model: TP2000F pallet wrapping machine

2. Applicable product specifications

Round diameter 2000mm non-black, silver goods

Packaging height within 2000mm (optional)

3. Wrapping film specifications: white machine film with a width of 500mm

2.Scope of delivery

1. Pallet wrapping machine

2. Certificate of conformity

3. User manual

4. Equipment nameplate

Main technical parameters: (subject to the actual product)

Disc diameter: 2000mm

Packaging height: 2000mm

Packaging efficiency: 20-40 pallets/hour

Turntable speed: 0-12rpm, variable speed adjustable, slow start and slow stop

Turntable size: diameter: 2000mm, height: 85mm

Turntable load: 2000kg

Mold frame system: pre-stretched film frame, pre-stretching up to 250%, automatic film feeding, AC speed control system

Lifting column: double chain structure, lifting speed variable adjustable

Control system: PLC control, adjustable winding layers, times, adjustable over-top height

Packaging material: LLDPE stretch film, thickness (T) 17-35um, width (W) 500mm

Machine weight: approx. 600kg

Voltage/power: AC220V about 1.5kw

Product specifications and uses (subject to the actual product)

1. Equipment model: TP2200F pallet wrapping machine

2. Applicable product specifications

Disc diameter 2200mm non-black, silver goods

Packaging height within 2000mm (optional)

3. Wrapping film specifications: white machine film with a width of 500mm

2.Scope of delivery

1. Pallet wrapping machine

2. Certificate of conformity

3. User manual

4. Equipment nameplate

Main technical parameters: (subject to the actual product)

Disc diameter: 2200mm

Packaging height: 2000mm

Packaging efficiency: 20-40 pallets/hour

Turntable speed: 0-12rpm, variable speed adjustable, slow start and slow stop

Turntable size: diameter: 2200mm, height: 85mm

Turntable load: 2000kg

Mold frame system: pre-stretched film frame, pre-stretching up to 250%, automatic film feeding, AC speed control system

Lifting column: double chain structure, lifting speed variable adjustable

Control system: PLC control, adjustable winding layers, times, adjustable over-top height

Packaging material: LLDPE stretch film, thickness (T) 17-35um, width (W) 500mm

Machine weight: approx. 600kg

Voltage/power: AC220V about 1.5kw

Product specifications and uses (subject to the actual product)

Equipment technical requirements and instructions (subject to the actual product)

1. PLC programmable control.

2. The top and bottom wrapping layers, times, top crossing time, and solid layers are directly set on the panel.

3. The number of packaging layers can be reduced or increased according to personal needs, and the packaging efficiency will be changed by the increase or decrease of the number of packaging layers.

4. Simple operation: Just press the automatic operation button to complete the entire packaging process.

5. The packaging height can be adjusted arbitrarily. Black and silver goods cannot achieve automatic height adjustment, and time control is adopted.

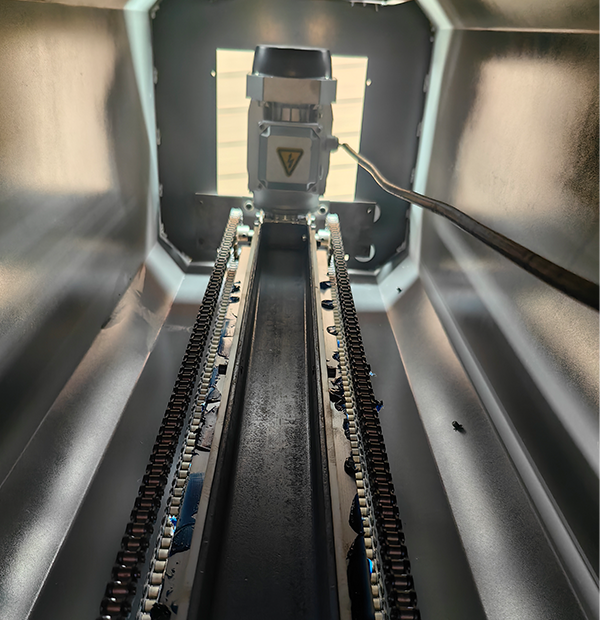

6. The lifting column is a double chain structure. Stable and reliable.

7. Automatic and manual conversion at any time.

8. The turntable frequency conversion speed is adjustable from 0 to 12rpm.

9. The turntable automatically resets after packaging.

10. The turntable is made of pure steel with high wear resistance.

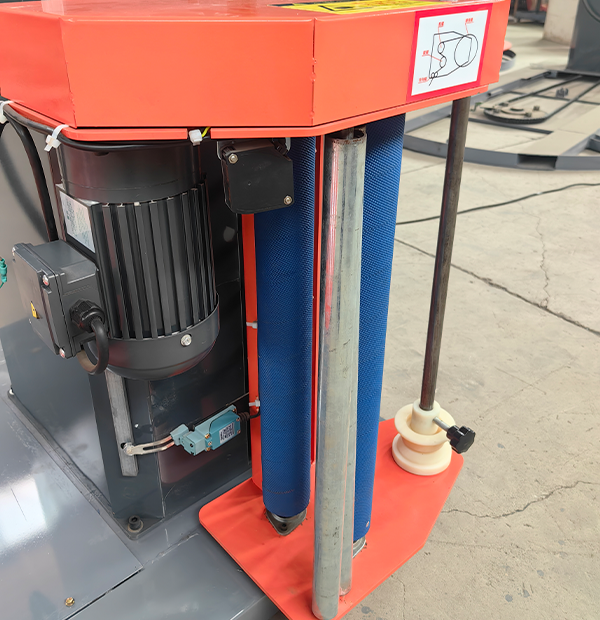

11. The film frame is a dynamic pre-stretching mechanism, and the pre-stretching can reach 250%. Reduce the amount of film consumption.

12. The rising and falling speeds of the film frame are adjustable separately.

13. Wear-resistant rubber rollers are selected for long service life.

14. The film system has a follow-up mechanism, which can be pulled.
