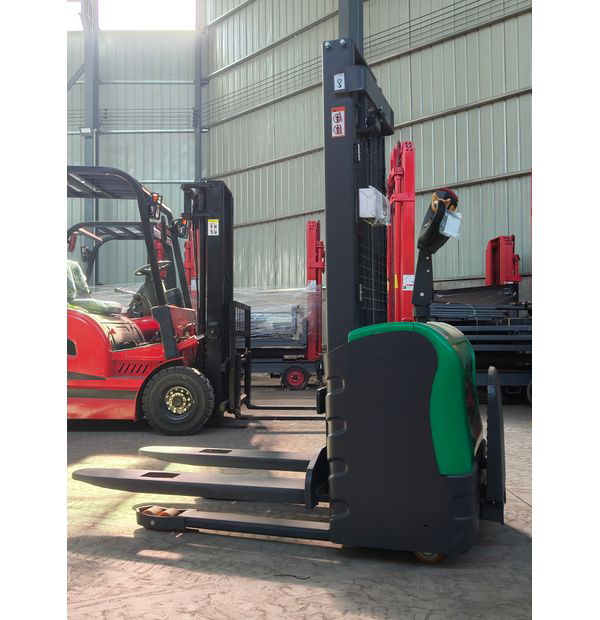

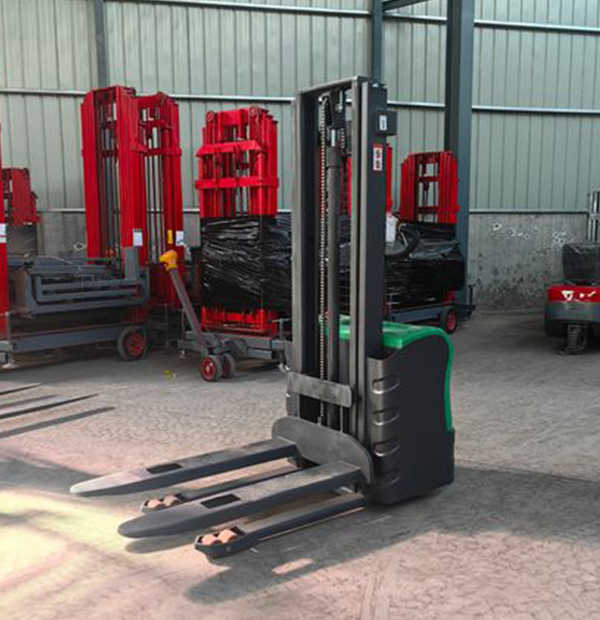

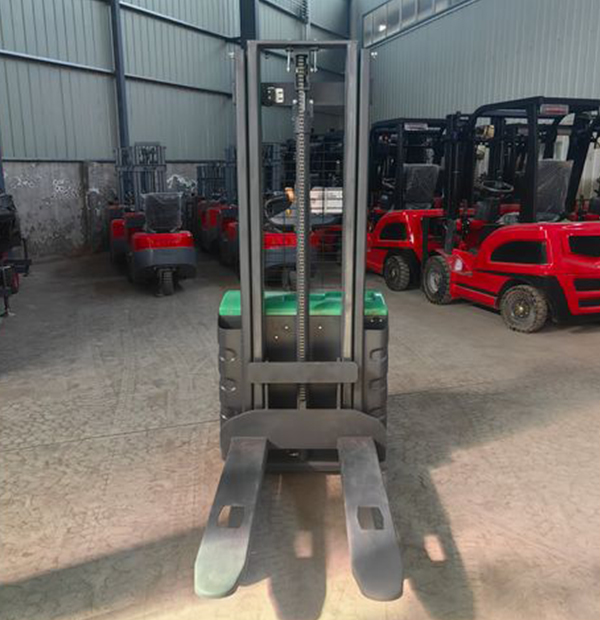

Fully electric stand-up stacker

Model

Heigh

Configuration

1.5 tons

1.6meters

Chaowei/Tianneng 48V/20ah battery, single-stage mast total height 2.02 meters, fork length 1.15 meters, fork width 16cm, fork space 35cm

Fork outer width 68cm, travel motor 1000%, oil pump motor 2200w

2 meters

Chaowei/Tianneng 48V/20ah battery, second-level gantry total height 1.55 meters, fork length 1.15 meters, fork width 16m, fork inner space 35cm.

Fork outer width 68cm, travel motor 1000w, oil pump motor 2200w

2.5 meters

Chaowei/Tianneng 48V/20ah battery, second-level gantry total height 1.77 meters, fork length 1.15 meters, fork width 16cm, fork inner space 35cm.

Fork outer width 68cm, travel motor 1000w, oil pump motor 2200w

3 meters

Chaowei/Tianneng 48V/20ah battery, total height of secondary mast 2.02m, fork length 1.15m, fork width 16cm, empty space inside fork 35cm.

External width of fork 68cm, travel motor 1000w, oil pump motor 2200w

3.5meters

Chaowei/Tianneng 48V/20ah battery, total height of secondary mast 2.25m, fork length 1.15m, fork width 16cm. Empty space inside fork 35cm, external width of fork 68cm, travel motor 1000m, oil pump motor 2200m

2 tons

1.6meters

Chaowei/Tianneng 48V/20ah battery, total height of single mast 2.02m, fork length 1.15m, fork width 16cm, empty space inside fork 35cm, external width of fork 68cm, travel motor 1000w, oil pump motor 2200w

2meters

Chaowei/Tianneng 48V/20ah battery, total height of secondary mast 1.55m, fork length 1.15m, fork width 16en. Fork space 35cm. Fork outer width 68cm, travel motor 1000w, oil pump motor 2200w

2.5meters

Chaowei/Tianneng 48V/20ah battery, total height of secondary mast 1.77m, fork length 1.15m, fork width 16cm, fork space 35cm. Fork outer width 68cm, travel motor 1000w, oil pump motor 2200w

3 meters

Chaowei/Tianneng 43V/20ah battery, total height of second-level door frame 2.02 meters, fork length 1.15 meters, fork width 16cm, fork inner space 35cm.Fork outer width 68cm, travel motor 1200w, oil pump motor 2200w

3.5meters

 Chaowei/Tianneng 48V/20ah battery, total height of second-level door frame 2.25 meters, fork length 1.15 meters, fork width 16cm, fork inner space 35cm, fork outer width 68cm, travel motor 1200m, oil pump motor 2200w

4.5meters

Chaowei/Tianneng 43V/20ah battery, total height of third-level door frame 2.02 meters, with hydraulic outriggers on both sides, fork length 1.15 meters, fork width 16cm, The fork is 35cm wide inside, 68cm wide outside, 1200w travel motor, 2200w

Note: Due to mass production, the above configuration is not customized except for the battery. (Replaceable 48V32 battery, 48V45 battery, 48V52 battery)
