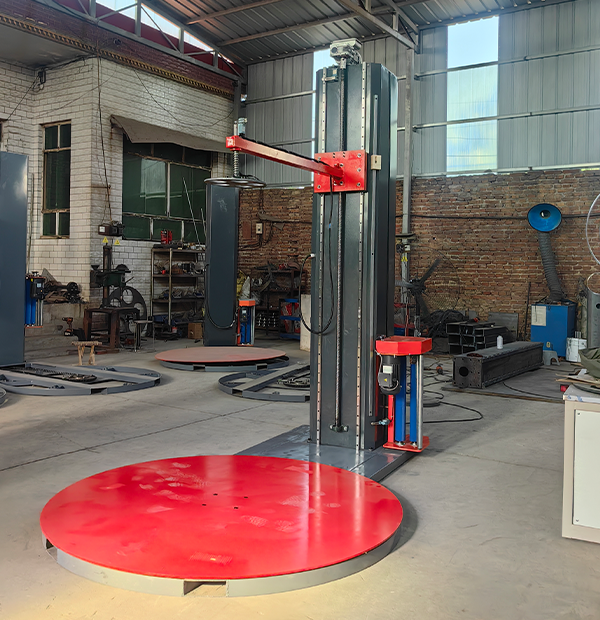

TP1650F-D automatic top-pressing pallet wrapping machine (electric)

product description

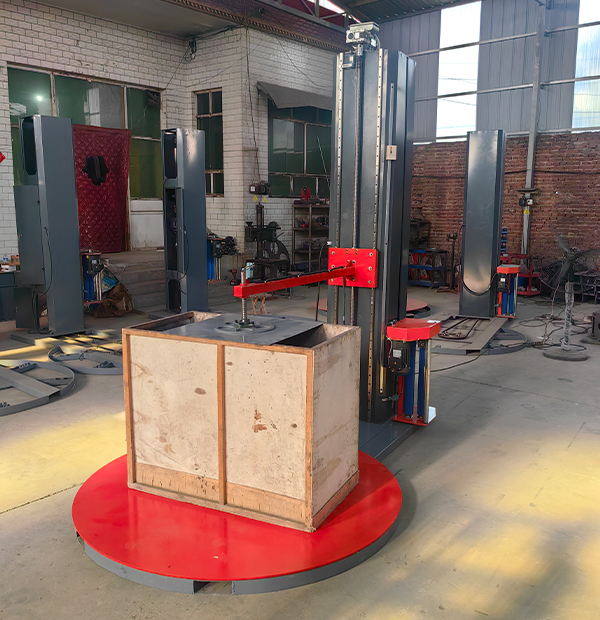

The automatic pre-stretched and top-pressed pallet wrapping machine adopts a pneumatic top-pressing device, and a separate lifting column is used for top-pressing, which can be controlled stably. Top-pressing equipment is mainly used in pallet packaging where the goods are light and the palletization is high and unstable to prevent the goods from falling during the packaging process. It is especially suitable for canning, empty bottle and other industries.

Main performance

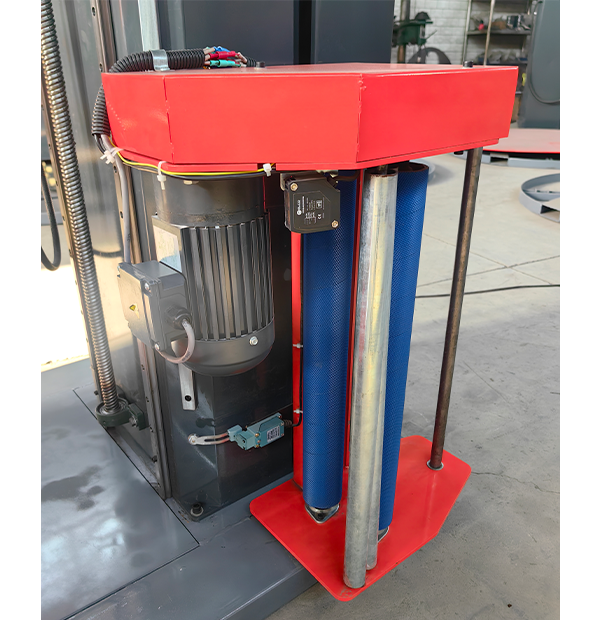

Film frame system

Pre-stretched film frame, pre-stretched up to 250%, automatic film feeding, DC speed regulation system

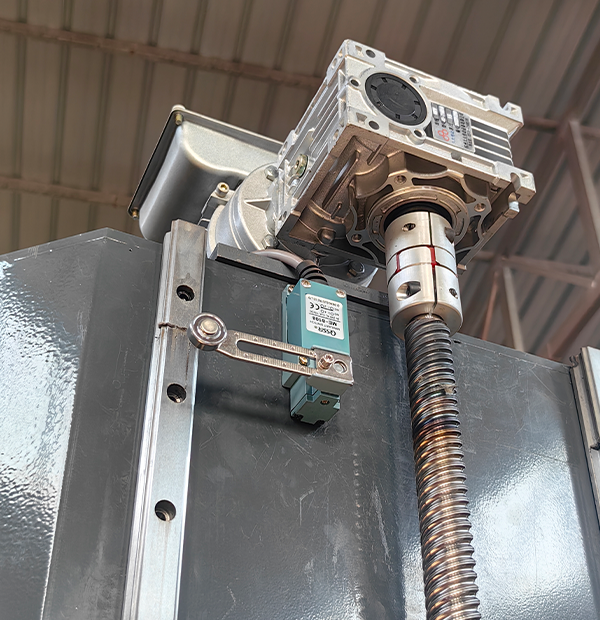

Lifting column

Double chain structure, lifting speed can be adjusted separately by frequency conversion

Control System

PLC programmable control, button operation panel, simple and clear

Operation function

Turntable automatic reset

There is a manual strengthening winding function, which can set the number of top/bottom wrapping patterns, the number of up and downs, the number of strengthening turns and the over-top time.

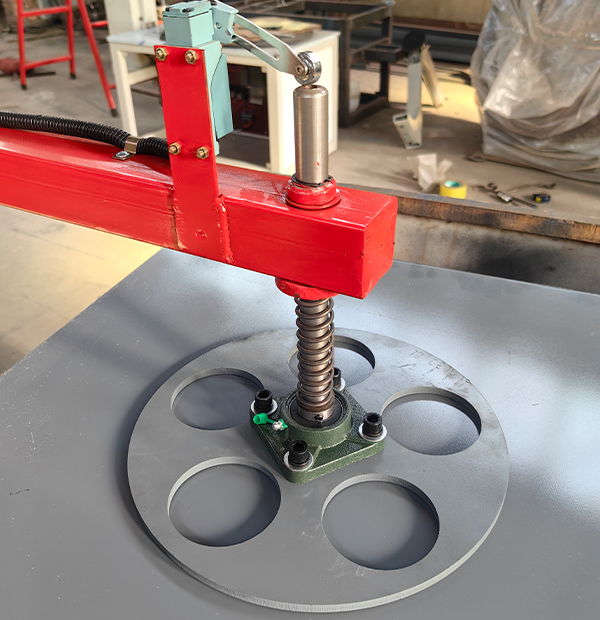

Top pressing device

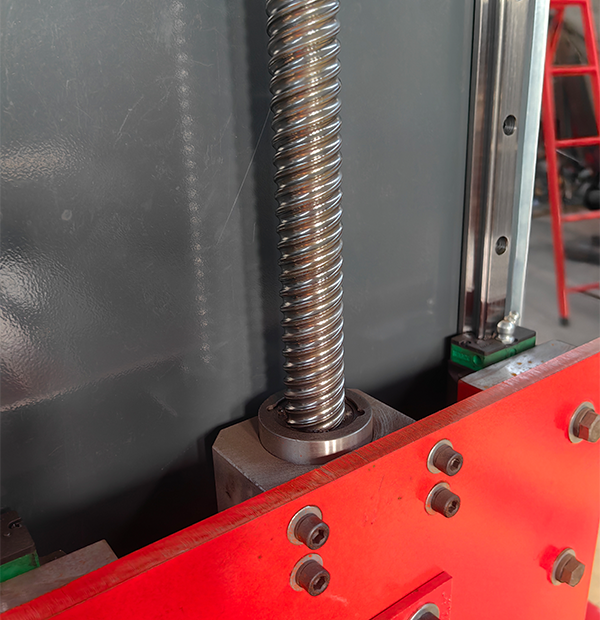

It adopts linear guide rail structure and pneumatic pressing system, which is safe, stable and easy to use.

The main parameters

Adopt pneumatic to electric pressure structure

Wrap specification (LxW)

(500-1200) mm *(500-1200) mm

Packing height

Please consult with sales staff when ordering

Packaging efficiency

20-40 pallet/hour

Turntable speed

0-12rpm tah turntable frequency control, turntable automatic reset

Turntable size

Diameter: 1650mm Height: 85mm

Turntable load bearing (max)

2000kg

Top pressure

20kg

Pneumatic system working pressure
0.6-1.0Mpa

Air consumption

1000ml/min

Shenglong column

Double column structure, safe and reliable

The whole machine weighs the most

800kg

Special specifications can be customized
