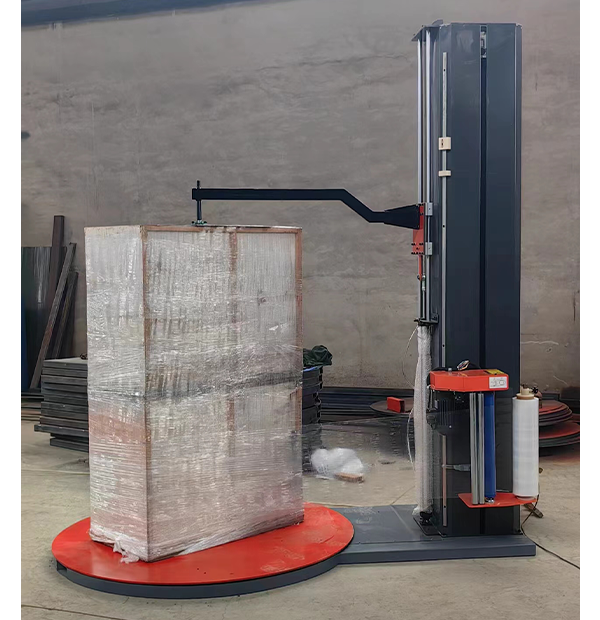

product description
The automatic pre-stretched and top-pressed pallet wrapping machine adopts a pneumatic top-pressing device, and a separate lifting column is used for top-pressing, which can be controlled stably. Top-pressing equipment is mainly used in pallet packaging where the goods are light and the palletization is highly unstable to prevent the goods from falling during the packaging process. It is especially suitable for canning, empty bottle and other industries.
Main performance membrane frame system
Pre-stretched film frame, pre-stretched up to 250%, automatic film feeding, DC speed regulating system lifting column
Double chain structure, lifting speed can be adjusted separately by frequency conversion
Control System
PLC programmable control, button operation panel, simple and clear operation functions
Turntable automatic reset
There is a manual strengthening winding function, which can set the number of top/bottom winding patterns, the number of up and down times, the number of strengthening turns and the over-top time pressing device.
It adopts linear guide rail structure and pneumatic pressing system, which is safe, stable and easy to use.
The main parameters
Wrapping specifications using pneumatic top-pressing structure
(500-1200) mm *(500-1200)mm packaging height
Please discuss packaging efficiency with sales staff when ordering
20-40 pallet/hour turntable speed
0-12rpm tah turntable frequency conversion speed adjustment, the turntable automatically resets the turntable size
Diameter: 1650mm Height: 85mm Turntable load-bearing (max)
2000kg
