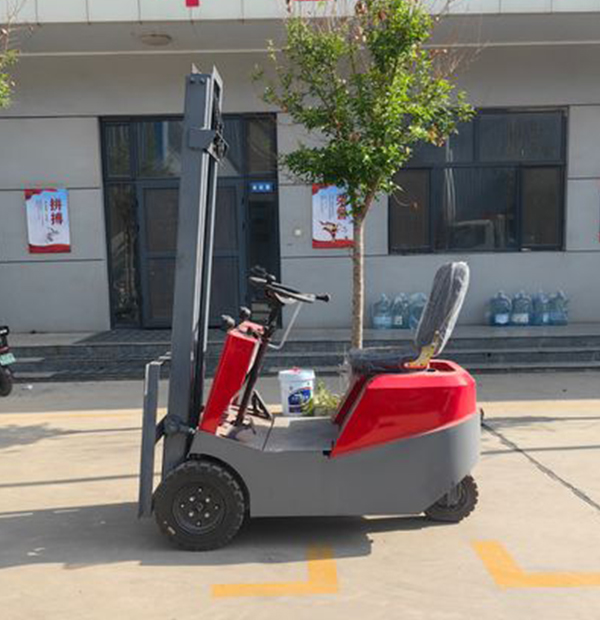

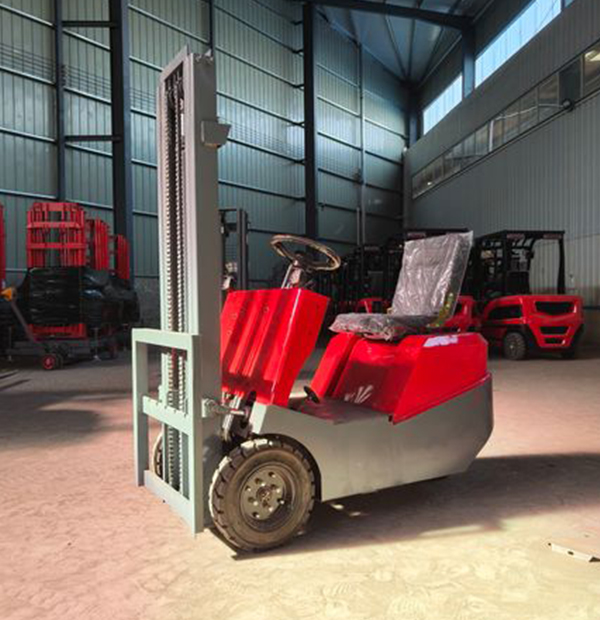

0.5 ton three-point electric forklift---lifting 2 meters |
||
|
Vehicle parameters |
Maximum load |
50KG |
|
Length |
1500mmwithout forks |
|
|
Length |
2420mmwith forks |
|
|
Width |
780mm |
|
|
Height |
1700mm |
|
|
Vehicle weight |
850KG |
|
|
Lifting height |
2000mm |
|
|
Body material |
Thickened one-piece body |
|
|
Travel motor |
1200wbrushless motor |
|
|
Controller |
24tube48v/60vuniversal |
|
|
Battery |
4 Chaowei dry batteries （48v/45a） |
|
|
Signal |
Power display |
|
|
Chassis system |
Chassis system Drive |
axle One-piece steel tube bridge |
|
Tire |
Front wheel400-8、 rear wheel 300-10 (both are high wear-resistant solid tires) |
|
|
Braking method |
Hand brake Mechanical brake |
|
|

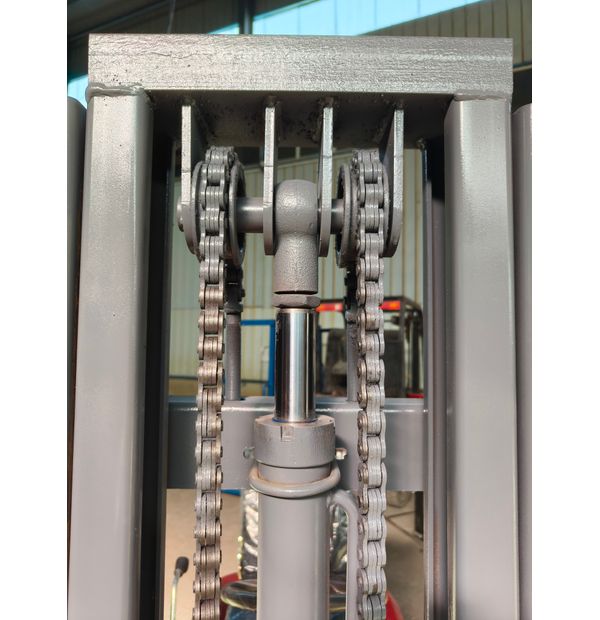

Lifting cylinder |
High precision machining Bidirectional single cylinder |
|
|
Fork length |
920mm One-piece forged fork |
|
|
Hydraulic lifting motor |
800w power unit |
|
|
Gantry material |
100mm C-type channel steel gantry |
|
|
Steering method |
Mechanical steering |
|
|
Turning radius |
1500mm |
|
|
Charging time |
6-8 hours |
|
|
Continuous working time |
About 4 hours |
|
|
Climbing angle |
12 degr0.5 ton three-point electric forklift---lift 3 meters |
|
|
0.5 ton three-point electric forklift---lift 3 meters |
||
|
Vehicle parameters |
Maximum load |
50KG |
|
Length |
1500mmwithout forks |
|
|
Length |
2420mmwith forks |
|
|
Width |
780mm |
|
|
Height |
1700mm |
|
|
Vehicle weight |
850KG |
|
|
Lifting height |
3000mm |
|
|
Body material |
Thickened one-piece body |
|
|
Travel motor |
1200w brushless motor |
|
|
Controller |
24tube 48v/60v universal |
|
|
Battery |
4 Chaowei dry batteries（48v/45a） |
|
|
Signal |
Power display |
|
|
Chassis system |
Drive axle |
One-piece steel tube bridge |
|
Tire |
Front wheel 400-8、rear wheel300-10(both are high wear-resistant solid tires) |
|
|
Braking method |
Hand brake Mechanical brake |
|
|
Lifting cylinder |
High precision machining Bidirectional single cylinder |
|
|
Fork length |
920mm One-piece forged fork |
|
|
Hydraulic lifting motor |
800w power unit |
|
|
Gantry material |
100mm C-type channel steel gantry |
|
|
Steering method |
Mechanical steering |
|
|
Turning radius |
1500mm |
|
|
Charging time |
6-8hours |
|
|
Continuous working |
time About 4 hours |
|
|
Climbing angle |
12 degrees |
|
|
|
|
|
